Camera Features
Effective Sensor Size
17.78mm x 10mm (Four Thirds)
Lens Mount
Active MFT Mount.
Lens Control
Iris, focus, zoom on supported lenses.
Dynamic Range
13 Stops.
Dual Native ISO
0dB and 18dB gain.
Sensitivity at 0dB Gain
f11 with 2160p59.94.
f12 with 2160p50.
at 2,000 lux with 89.9% reflectance.
Signal to Noise Ratio
63dB for 2160p.
Shooting Resolutions
3840 x 2160 (Ultra HD) up to 60 fps.
Frame Rates
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.
Off-speed frame rates up to 60 fps in Ultra HD.
Focus
Auto focus available using compatible lenses.
Screen Dimensions
7 inch 1920 x 1200
Screen Type
LCD capacitive touchscreen.
Screen Brightness
600 nits

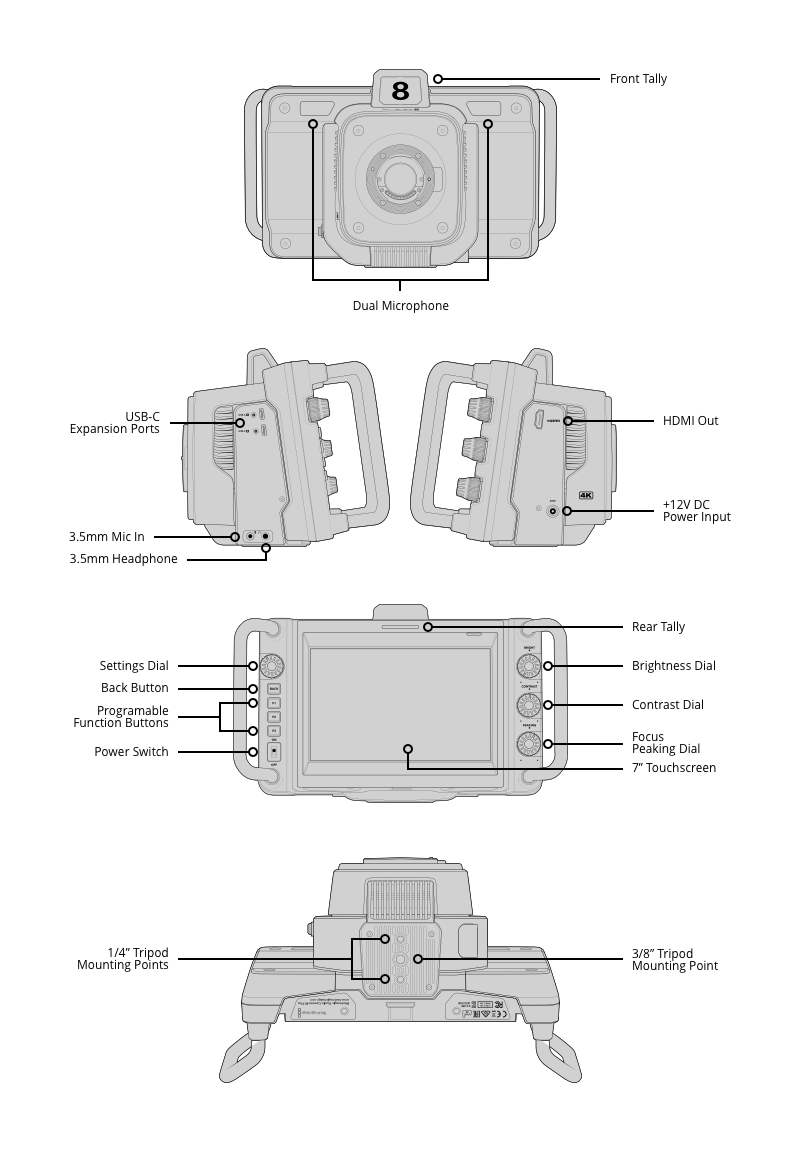

Controls
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
Mounting Options
2 x 1/4 inch tripod mount.
1 x 3/8 inch tripod mount.
Connections
HDMI 2.0 Video Outputs
1
Analog Audio Input
1 x 3.5mm Stereo Input. Can also be used for Timecode input.
Analog Audio Output
1 x 3.5mm mini jack for headphones.
Remote Control
Remote camera control over HDMI.
Computer Interface
2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.
AudioMicrophoneIntegrated stereo microphone.Built in Speaker1 x mono speaker.StandardsSD Video StandardsNoneHD Video Standards1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60Ultra HD Video Standards2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.HDMI Audio SamplingTelevision standard sample rate of 48 kHz and 24‑bit.MediaMedia2 x USB-C 3.1 Gen 1 expansion ports for externalmedia for recording Blackmagic RAW.Media FormatCan format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.Supported CodecsCodecsBlackmagic RAW Constant Bitrate 3:1,Blackmagic RAW Constant Bitrate 5:1,Blackmagic RAW Constant Bitrate 8:1,Blackmagic RAW Constant Bitrate 12:1,Blackmagic RAW Constant Quality Q0,Blackmagic RAW Constant Quality Q1,Blackmagic RAW Constant Quality Q3,Blackmagic RAW Constant Quality Q5Storage FeaturesStorage Type2 x USB‑C 3.1 Gen 1 expansion ports for external media.Recording FormatsBlackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.Storage RatesStorage rates based on 30 frames per second.3840 x 2160 (Ultra HD)Blackmagic RAW 3:1 - 127 MB/sBlackmagic RAW 5:1 - 77 MB/sBlackmagic RAW 8:1 - 48 MB/sBlackmagic RAW 12:1 - 32 MB/sBlackmagic RAW Q0 - 96 to 190 MB/sBlackmagic RAW Q1 - 64 to 153 MB/sBlackmagic RAW Q3 - 43 to 109 MB/sBlackmagic RAW Q5 - 26 to 64 MB/sConstant Quality storage rates quoted are indicative only.Actual storage rates are entirely dependent on image subject matter.ControlExternal ControlBlackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.Blackmagic Control Protocol over HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port.Color CorrectorDaVinci YRGBTallyLive Tally Indicator1 x front facing for talent,1 x rear facing for operator.SoftwareSoftware IncludedBlackmagic Camera Setup for Mac and Windows.Operating Systems Mac 10.15 Catalina,Mac 11.1 Big Sur or later. Windows 10, 64-bit.Power RequirementsPower Supply1 x External 12V DC 60W power supply.Power Inputs1 x 12V DC locking 5.5 mm barrel connector.Power Usage15 ‑ 22 W.Optional AccessoriesBlackmagic Focus DemandBlackmagic Zoom DemandATEM Mini switchersATEM Television Studio HD and HD Pro switchersPhysical Specifications Environmental SpecificationsOperating Temperature0° to 40° C (32° to 104° F)Storage Temperature-20° to 45° C (-4° to 113° F)Relative Humidity0% to 90% non-condensing
