HDMI, Stereo Headphone, DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera)
Some cameras can output logarithmic colors pace to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. You could use 4 built-in LOG to Rec.709 video or upload .cube files ( A single file must not exceed 7.9M, supports files with LUT_3D_SIZE of 16, 17, 32, 33, 64, 65.). FT6, FR6 allows you to load internally up to custom LUTs (Up to 50 user files can be imported), looks or profiles at any time via the TYPE-C interface to USB . Slot and instantly select between them, maintaining creative intent, always.
Touch Screen Operating Instruction
Long press to turn on and off the power; short press to turn on and off the screen touch function.
1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
2. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the "<" or ">" key.
3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.
4. Swipe from the right side of the sceen to left to open the channel display. There are 11 channels for selection.
5. Click any space beside menu to exit the menu.
Touch Screen for Easy Control at Your Fingertips
Make your filming more efficiency

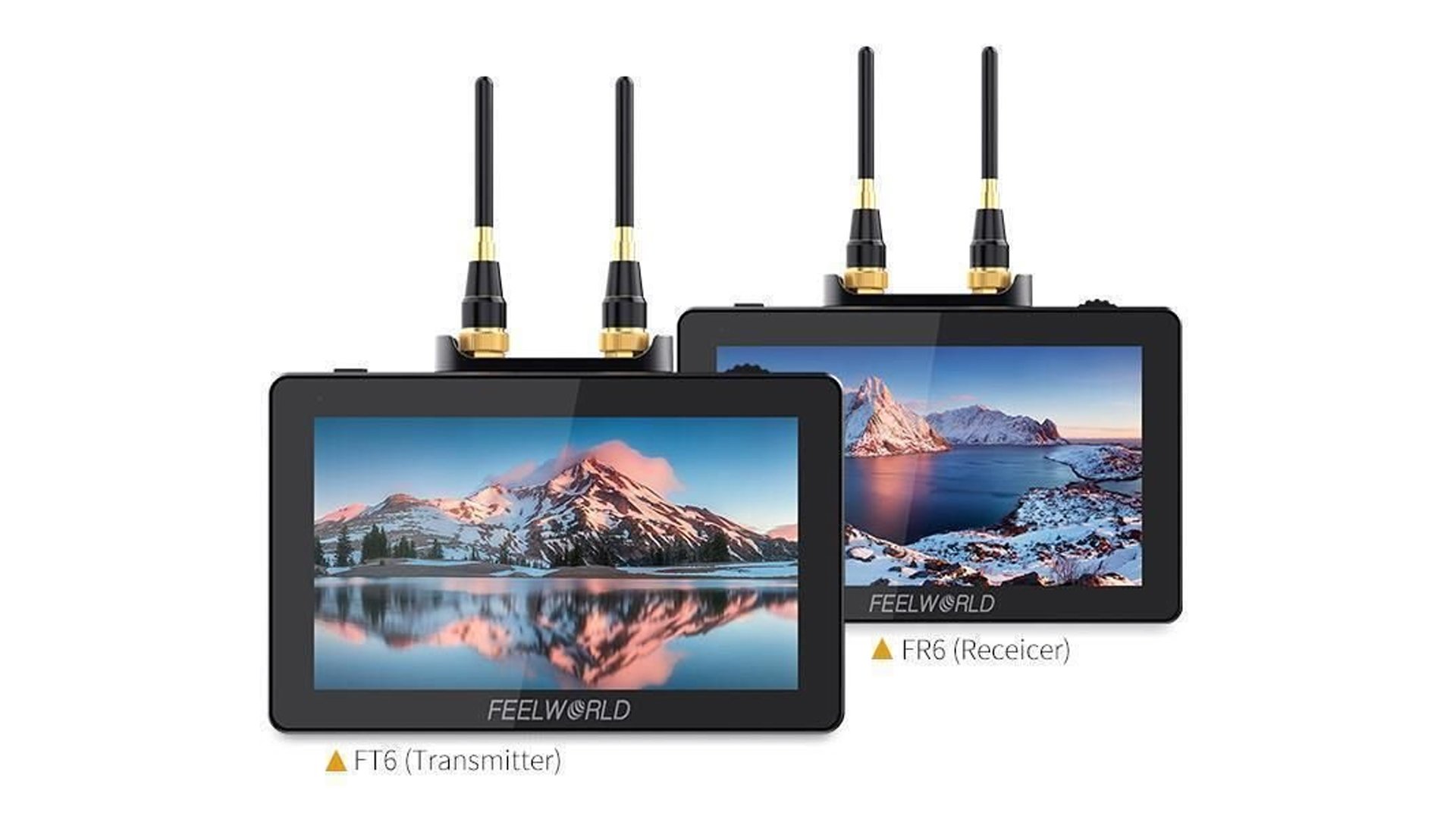

The built-in monitor is also an interactive touchscreen that makes setting up the FT6, FR6 incredibly intuitive. All of the functions are at your fingertips, allowing you to use simple tap and swipe gestures to change function settings. You can use two-finger zoom gesture to easily and intuitively zoom in and out of the shooting screen. Plus, they also support physical buttons control. Tap/Rotate the wheel button for quick selection and function settings. Tap the power switch to turn off the touch function, designed to prevent misuse.
Up to 1080p60HZ, Restore the Real Picture
Support 1080P60, 1080P50, 1080i60, 1080i50, etc. common video formats, can easily handle whether it is for directors, photographers monitoring, or live video transmission.
11 Channels for Selection
Bring you more stable pictures
There are 11 signal channels for selection for the wireless monitor. You can choose the best channel freely. When you don’t need the transmission function, you can long press the power icon to turn off. Plus, there is WPS pairing function. When you need to replace the transmitter or receiver, please long press WPS of both the transmitter (TX) and receiver (RX) about 1 second to enter the pairing mode, and wait for the pairing to success.
