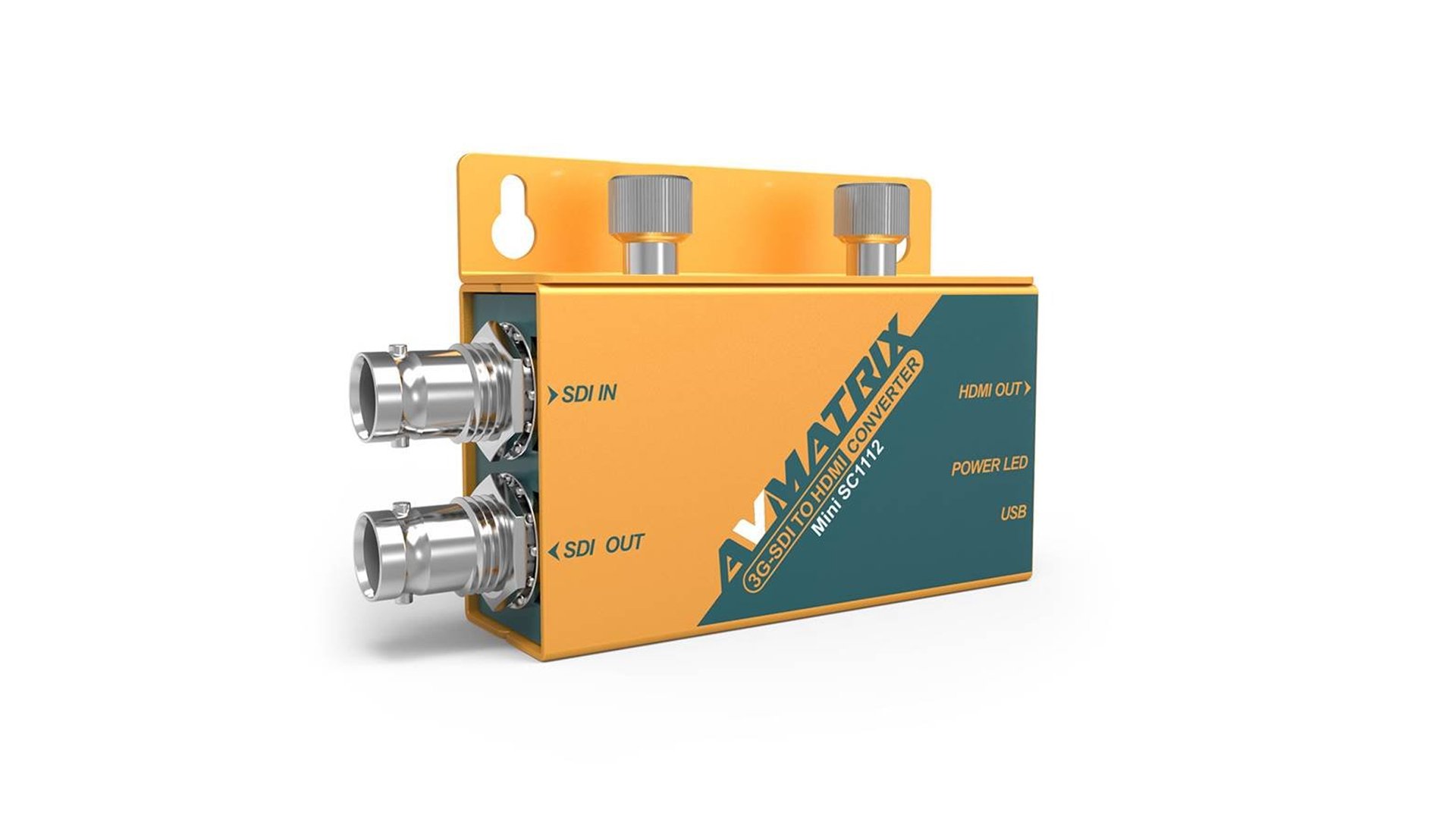

Mini SC1112 3G-SDI to HDMI Pocket-Size Broadcast Converter
Product Highlights
3G/HD/SD-SDI Input (Auto-Selecting)
HDMI Type-A Output
3G/HD/SD-SDI Loop Out
Supports up to 1080p60 Resolution
Works 24/7 without Lag/Delay
Micro-USB Port for Power
AC Power Adapter Included
Can Be Connected to Power Banks, Etc.
LED Power Indicator
Mounting Bracket Included
AV Matrix SC1112 specs
Input
1 x 3G/HD/SD-SDI (auto-selecting; level A and B supported)
Output
1 x HDMI type-A
1 x 3G/HD/SD-SDI loop out
SDI Format Support
1080p at 50/59.94/60 fps
1080psf at 23.98/24/25/29.97/30 fps
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 24/25/30/50/59.94/60 fps
625i at 50 fps
525i at 59.94 fps
SDI Compliance
SMPTE 292M/SMPTE 259M/SMPTE 424M
SDI Color Space
YUV 4:2:2
HDMI Format Support
1080p at 50/59.94/60 fps
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 24/25/30/59.94/60 fps
576i at 50 fps
480i at 60 fps
HDMI Color Space
YUV 4:2:2
Power Port
1 x micro-USB
Power Consumption
1.5 W
Voltage Range
3.3 – 5 V
Operating Temperature
-4 to 140°F (-20 to 60°C)
Storage Temperature
-22 to 158°F (-30 to 70°C)
Relative Humidity
0 to 90% non-condensing
Dimensions
2.9 x 1.6 x 0.9″ (7.4 x 4.1 x 2.3 cm)
PACKAGING INFO
Package Weight
0.9 lb
Box Dimensions (LxWxH)
4.6 x 3.3 x 3.1″
Mini SC1112
3G-SDI to HDMI Mini Converter
The Mini SC1112 is a Pocket-size broadcast Converter, it converts SDI input signal to HDMI signal and with SDI loop out. it is very convenient for users with the full size SDI and HDMI connectors.
