MMV1630 AV Matrix 16-Channel 3G-SDI Multiviewer and Switcher (1 RU)
Product Highlights
2-in-1 Device
16 x 3G-SDI Inputs
16 x 3G-SDI Loop Outputs
2 x SDI & 1 x HDMI Outputs
Supports SD, HD, and 3G-SDI
20 Standard Layouts
Nine Selectable Formats up to 1080p
Time Code and UMD Overlays
Signal Status and Audio Meter Overlays

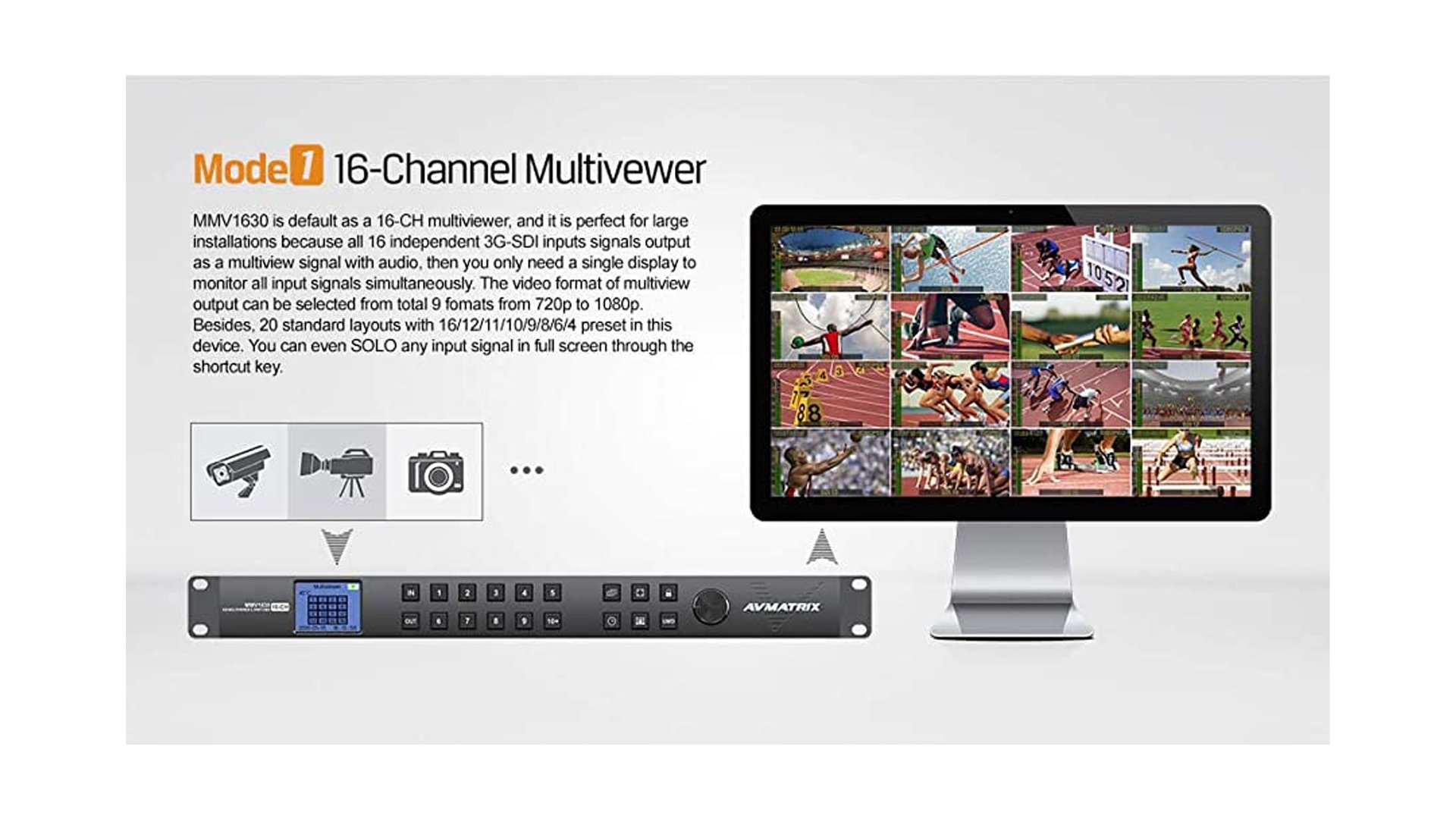

1 RU 16-Channel 3G-SDI Multiviewer and Switcher from AV Matrix features two modes in one device. Mode 1 acts as a 16-channel multiviewer, with 16 independent 3G-SDI inputs. The video format of multiview outputs can be selected from nine formats from 720p to 1080p and include 20 standard layouts. The signals are viewed simultaneously on one display and each window is completely independent with overlays such as signal status, audio meter, UMD, and time code.
Mode 2 turns this device into a 16 x 16 SDI matrix switcher, compatible with multiple format signal inputs in different resolutions and frame rates with audio detection. The MMV1630 can be controlled using the buttons, knob, and LCD screen on the front panel, or with a PC software via Ethernet. A compact 1 RU design makes it suitable for any live broadcast or post production such as OB vans, broadcast control rooms, and studios.
16 X 3G-SDI AUTO-DETECTED INPUTS WITH LOOP OUTPUTS
2 X 3G-SDI AND 1 X HDMI MULTIVIEW SCALING OUTPUTS WITH AUDIO
FULL SCREEN AND 20 PRESET LAYOUTS WITH CLOCK DISPLAY
DUAL POWER DESIGN, REDUNDANT POWER
AV Matrix MMV1630 specs
MULTI-VIEW MONITORING
Inputs
16 x SD/HD/3G-SDI
Loop Outputs
16 x SD/HD/3G-SDI
Outputs
2 x SDI
1 x HDMI
Resolution
SDI Input:
1920 x 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz
1920 x 1080PsF at 30/29.97/25/24/23.98 Hz
1920 x 1080i at 60/59.94/50 Hz
1280 x 720p at 60/59.94/50/30/29.97/25/24/23.98 Hz
625i 50 PAL
525i 59.94 NTSCSDI/HDMI Output:
1080p at 60/50/30/25/24 Hz
1080i at 60/50 Hz
720p at 60/50 Hz
SDI Auto Switching
Auto Selects SD, HD, and 3G-SDI on Input
SDI Video Rates
SD/HD/3G-SDI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M
Color Space
YUV 4:2:2, YUV 4:4:4, RGB 4:4:4 (SDI Input)
YUV 4:2:2 (Multiview HDMI/SDI Output)
SWITCHER
Inputs
16 x SD/HD/3G-SDI/DVB-ASI
Outputs
16 x SD/HD/3G-SDI/DVB-ASI
SDI Format Support
2048 x 1080p at 30/29.97/25/24/23.98 Hz
2048 x 1080PsF at 30/29.97/25/24/23.98 Hz
1920 x 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz
1920 x 1080PsF at 30/29.97/25/24/23.98 Hz
1920 x 1080i at 60/59.94/50 Hz
1280 x 720p at 60/59.94/50/30/29.97/25/24/23.98 Hz
625i 50 PAL
525i 59.94 NTSC
SDI Auto Switching
Auto Selects SD, HD, and 3G-SDI on Input
SDI Video Rates
SD/HD/3G-SDI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 352M, SMPTE 372M, SMPTE 424M, SMPTE 425M, DVB-ASI
Color Space
YUV 4:2:2, YUV 4:4:4, RGB 4:4:4, XYZ 4:4:4
GENERAL
Controls
Front Panel Buttons and Knob
Connectors
LAN (Software and Update)
RS-422 (Reserve)
Display
2.2″ / 5.6 cm LCD Screen
Voltage
12 to 20 VDC
Power Supply
PS-1, PS-2, Power Redundancy
Power Consumption
36 W
Operating Temperature
32 to 140°F / 0 to 60°C
Storage Temperature
-22 to 158°F / -30 to 70°C
Humidity
0 to 90%
Rack Size
1 RU
Dimensions
19.0 x 1.7 x 5.9″ / 48.3 x 4.4 x 14.9 cm
Weight
4.4 lb / 2 kg
