Connections
SDI Inputs
3
SDI Loop Outputs
3
SDI Outputs
3
SDI Audio Inputs
16 channels embedded audio.
SMPTE 2110 Input / Output
10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data.
10G Ethernet Port
1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T.
Reference Output
Tri-Sync or Black Burst.
Computer Interface
USB-C for updates, configuration and control.
Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and level B, ITU-R BT.656, ITU-R BT.601.
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning.
Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
Color Precision
8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
Color Space
REC 601, REC 709
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)
IGMP v2
SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)
Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver capabilities
Control

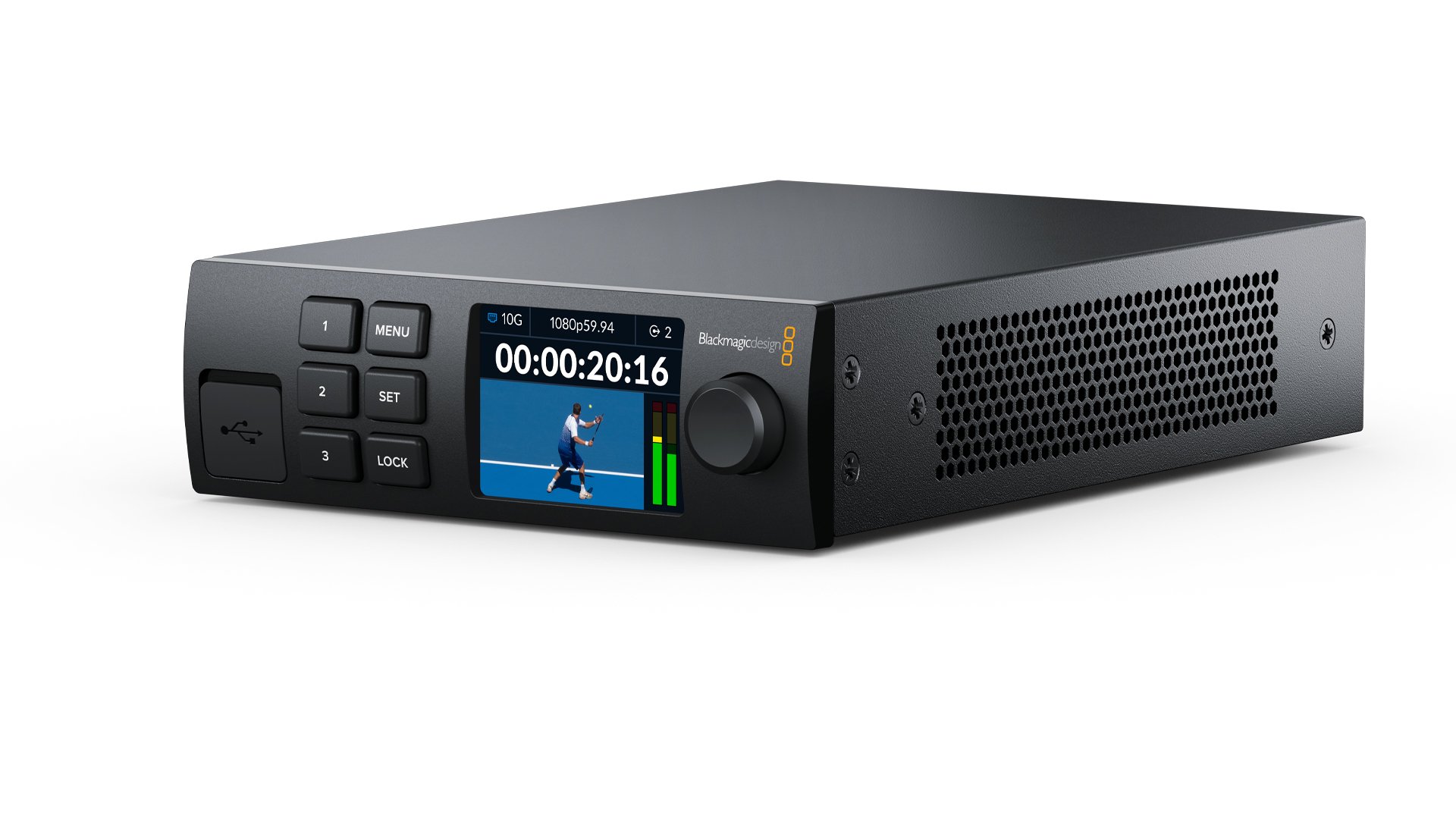

Built in Control Panel
6 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
External Control
RJ-45 10Gb/s Ethernet and USB-C.
Display
Built in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu settings.
Physical Specifications
Operating Systems
Mac 12.0 Monterey,
Mac 13.0 Ventura or later.
Windows 10, 64-bit.
Windows 11.
Power Requirements
Power Supply
1 x Internal 100 - 240V AC 50/60Hz.
Power Inputs
1 x IEC C14 socket for AC power.
1 x RJ45 Ethernet connector for power from PoE power supplies.
Power Usage
TBA
Environmental Specifications
Operating Temperature
5° to 40 ° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
