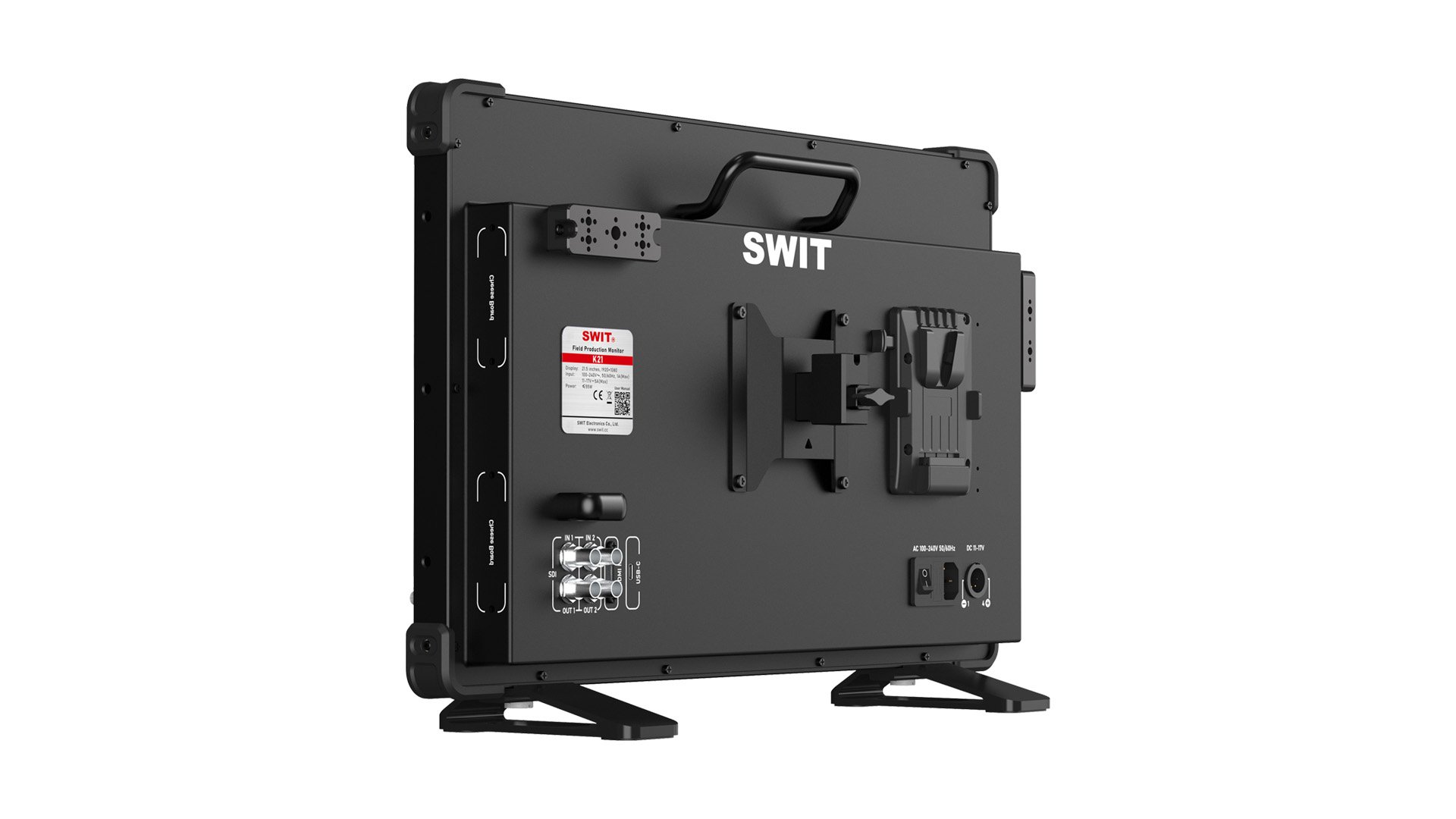

K21 21.5" FHD 1500nit Field Monitor
คุณสมบัติสินค้า:
› 21.5-inch 1920×1080 10bit IPS Panel › 1500nits high bright sunlight view › Rubber corner anti-crash guards › Quick release screen protective glass › 2× Interchangeable Cheese plates › Provide C-stand Mounting Adaptor › 2K/3G/HD/SD-SDI & 4K-HDMI Monitoring › Built-in Multi-Camera Delog Luts SDR & HDR › 10× User 3DLuts Cubes Upload by USB-A › Automatic 3DLuts Calibration by USB-C › Scene OS - 8 Pages Create Quick Switching › 4× Function Keys Assigned for Each Scene › Anamorphic De-squeeze › Custom False color / Zebra values › Waveform / Vector scopes / Histogram › Peaking / Focus assist / Crosshatch / Safe area › SDI audio meters / Timecode display › AC / 4-pin XLR / V-mount battery power › Provide flight case install kit (SKU: K21-FC)
หมวดหมู่ : SWIT , จอมอนิเตอร์ / Monitor ,
แบรนด์ : SWIT
Share
Display
Panel type
IPS, LED backlight
Size
21.5 inches
Display area
476.06×267.78mm
Resolution
1920×1080, 16:9
Brightness
1500nits
Contrast
1100:1
Color depth
10-bit
Response time
25ms
Viewing angle
178°(H) /178°(V)
Input
BNC ×2
2K/3G/HD/SD-SDI input
HDMI® ×1
HDMI® 1.4 input
USB-A ×1
LUT, firmware input
USB-C ×1
Calibration probe input
Output
BNC ×2
2K/3G/HD/SD-SDI loop output
Analog audio
3.5mm headphone and speaker
Video Format
SDI
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080psf (30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
HDMI
4096×2160p (30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (30 / 29.97 / 25 / 24 / 23.98)
2160×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
General
AC Input
AC 100-240V, 50/60Hz
DC Input
4-pin XLR & V-mount battery 11-17V 3A
Power Consumption
≤55W
Working temperature
0°C～+40°C
Working humidity
10%～90%
Dimensions
Monitor: 531×345.7×92.7mm
With carton package: 615×200×445mm
With Flight case package: 660×360×530mm
Weight
Net 7.5kg
With carton package 9.7kg
With Flight case package 17.3kg
